structural

This module is a simple 3-D beam finite element model, based on the “Matrix Displacement Method” a.k.a. “Direct Stiffness Method”. It is suitable for statically indeterminate structures. The notation used in this module follows the Theory of Matrix Structural Analysis, (mostly Chapter 6).

J. S. Przemieniecki: Theory of Matrix Structural Analysis (1968), ISBN 13: 9780070509047, which actually made that structural matrix course I failed in university look like it might make sense when using computers.

“Craig” a.k.a. JWock82 (PyNite) and Runar Tenfjord a.k.a. tenko (feapy) whose modules were useful examples at the time, if not quite what I was looking for.

../_images/structural_eiffel.png

Overview

The general idea is:

\[\mathbf{U} = \mathbf{K^{-1}}(\mathbf{P}-\mathbf{Q})\]

where:

  • \(\mathbf{U}\) is the vector of displacements

  • \(\mathbf{K}\) is the global stiffness matrix

  • \(\mathbf{P}\) is the vector of nodal forces

  • \(\mathbf{Q}\) is the vector of thermal and distributed forces mapped to the nodes

The structure of the module aims to follow closely the flow diagram in the Theory of Matrix Structural Analysis:

../_images/flow_diagram_matrix_displacement.jpg

Coordinates

Global x, y, z coordinates are used as in the rest of the code base:

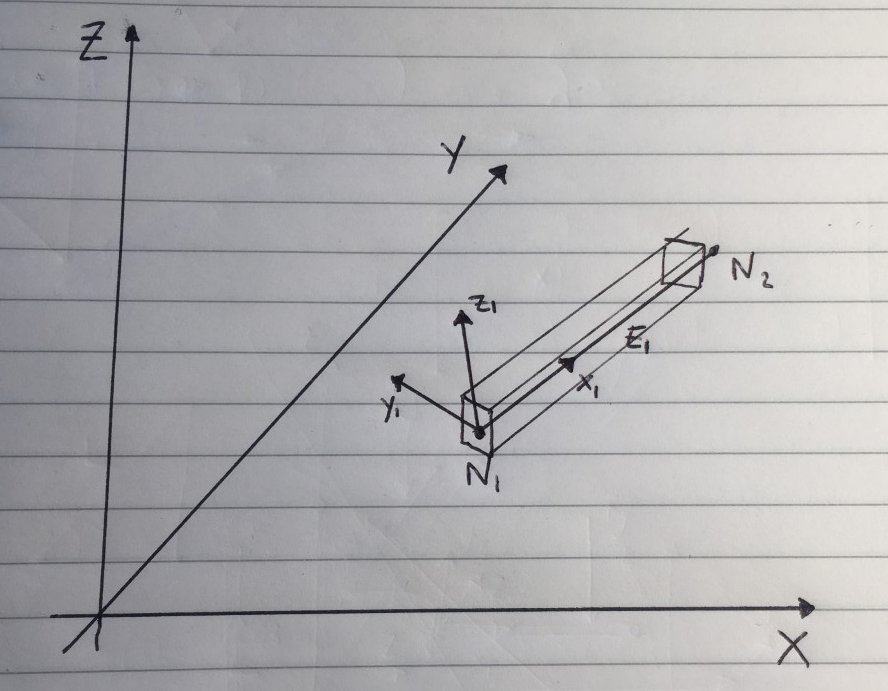

Element local coordinates

Here, local x, y, z coordinates are as follows:

../_images/structural_coordinate_system.jpg

Note that the handed-ness of the coordinate system is the same as the global one, and does not follow a conventional structural analysis coordinate system for the directions of the y and z axes (which are typically inverted, or named z and x, respectively).
